Text 3D: how to use it?

Discussion in 'SketchUcam Bugs' started by d.spera, May 5, 2011.

  1. d.spera

    d.spera New Member

    Offline
    Messages:
    2
    Trophy Points:
    0
    Hello everyone,

    I have some difficulties in carrying out some letters made with Text 3D in sketchup and PhlatscripT.

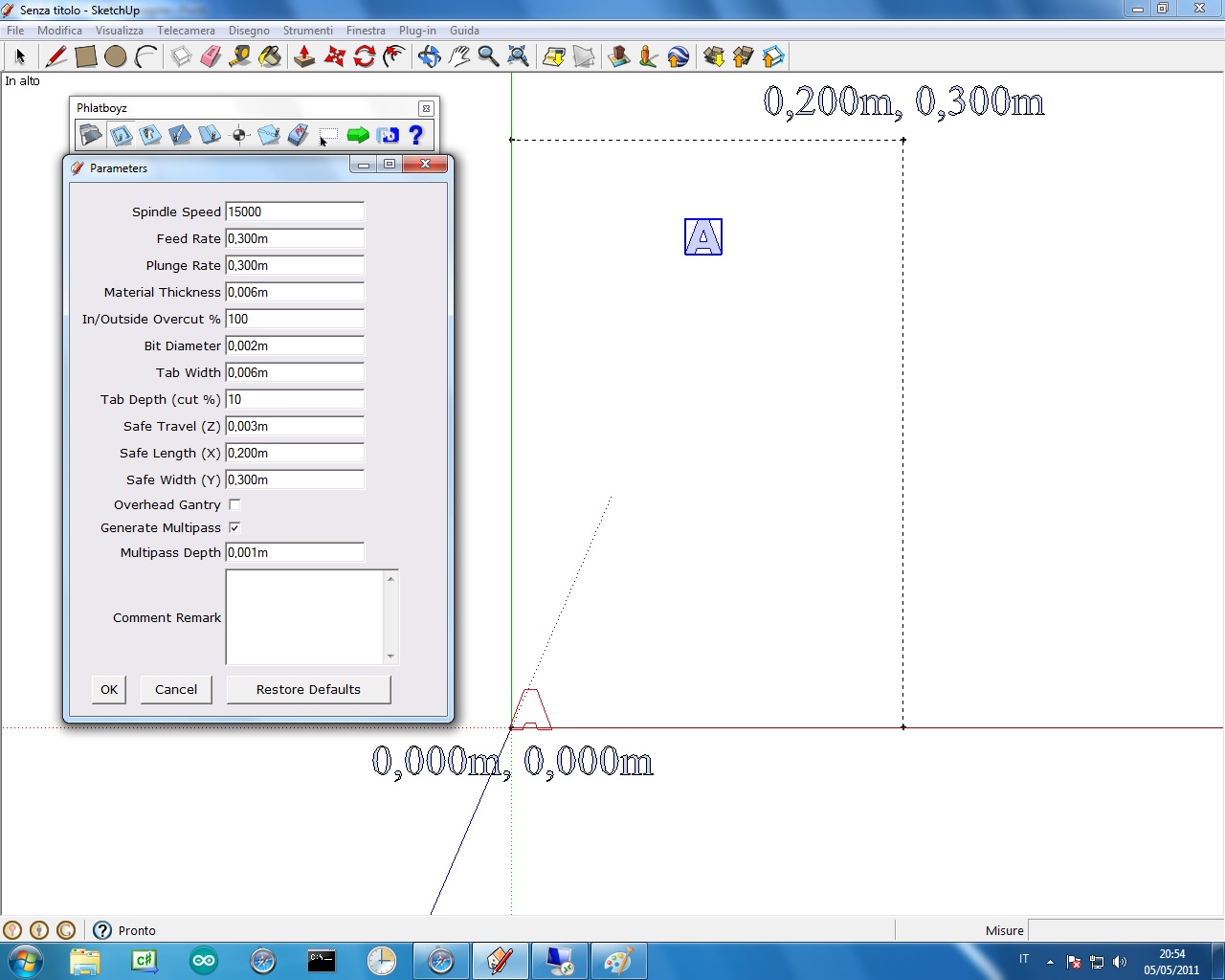

    When I select a letter from outside the tool cut tool, it happens that you see in the picture attached: the outline wasted outside the safe area with the wrong coordinates.
    The 'A' is a Text 3D object, filled with no extrusion.

    Everything else works fine.

    I am using win7 Italian, and SketchUp 8.0.4811 PhlatscripT 0924.

    The resulting g-code file:

    %
    (Generated by PhlatscripT {0924})
    (Bit diameter: 0.002 m)
    (Feed rate: 0.300 m)
    (Material Thickness: 0.006 m)
    (Material length: 0.300 m X width: 0.200 m)
    (Overhead Gantry: false)
    (http://www.PhlatBoyz.com)
    G90 G21 G49
    M3 S15000
    G0 Z3.000
    G0 X0 Y0
    M05
    G0 Z0
    M30
    %

    What's wrong? Any suggestion?

    Thanks.
    Domenico
    Anguillara Sabazia, Rome, Italy Attached files [​IMG]

    d.spera, May 5, 2011
    #1
  2. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Hi Domenico and WELCOME.
    Wow... that's a weird one. No real G-Code is easy... The red A (your code) is outside the safe area. Anything out of the safe area is not going to generate code.

    Big question.. why is the red A where it is? I have done 3D text quite a bit, but I forget the exact sequence I use as I just do it so to speak. FWIW, I use SU 7. Not sure if it is treated differently in 8

    If I remember correctly the 3D text is a group. You will need to ungroup to apply the PhlatScript. (Right click the object, then explode)

    Have you tried something simple like a square to see if you get the same results?

    BTW, I was in Rome last year. What a BEAUTIFUL city with VERY friendly folks.
