Welcome to The Phlatforum PhlatPrinter III

Yak 30 Plans

Discussion in 'Single Wing Aircraft Plans' started by sdparkflyers, Mar 18, 2010.

  1. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego

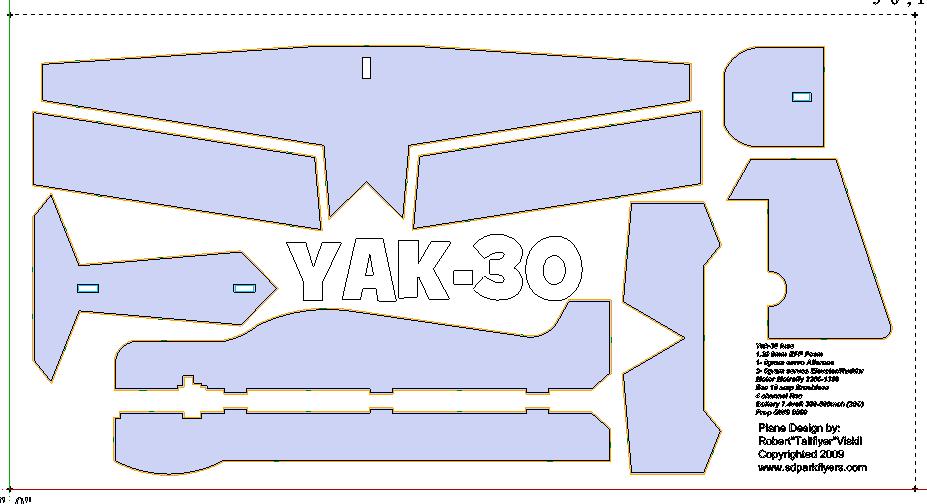

    Here is my Yak-30 this is a plane I designed last year around 9mm epp foam

    the plane uses
    1- 9 gram servo for the Ailerons
    2- 5 gram servos for the Elevators and Rudder
    1- Brushless Outrunner I went with the Motrofly 2205-1350 http://www.sdparkflyers.com/motrofly.html
    GWS 9050 Prop
    7.4 volt 2 cell 360-500 mah Lipo (20C) Pack
    light weight receiver
    1- 10 amp Brushless esc

    Im still new at this phlatprinter stuff so if you see any mistake feel free to let me know
    I have a bunch of plans that I will convert over. Attached files 30inch.cnc (12.4 KB)Â 30inch.skp (1 MB)Â [​IMG]

    sdparkflyers, Mar 18, 2010
    #1
  2. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    You're really getting the hang of it. For Phlatprinter cutting you want to add more tabs, especially around corner areas, those corners can sag and catch in the Phlatprinter spindle slot and jam you foam up. Also set your parameters, (material thickness, safe cutting area, etc.) before applying any cut paths.

    Pic below is the only mistake I seen. Also check out the Gplot plugin, it will allow you to inspect your gcode when you're done.

    Get Gplot here --> viewtopic.php?f=185&t=1128 Attached files [​IMG]

    7up, Mar 18, 2010
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Very cool sdparkflyers!
    Keep'em coming.
    One thing I would like to ask is we try to include the cut code as well so guys can just load the file an Phlatprint it.
    You will need to setup the material thickness in the parameters section of the Phlatscript and hit the green arrow to save the .cnc file. You can upload that file here right along with the sketchup file.
    Thank you for sharing all these cool planes
    Mark and Trish

    kram242, Mar 18, 2010
    #3
  4. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    Thanks for the tips and information I will keep working on the stuff I have.

    sdparkflyers, Mar 18, 2010
    #4
  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Awesome! :)
    Thank You
    Mark

    kram242, Mar 18, 2010
    #5
  6. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    Here is a CNC code Post If someone wants to cut one out so I can see my work that would be cool
    thanks everyone. Attached files 30inch.cnc (12.4 KB)Â

    sdparkflyers, Mar 18, 2010
    #6
  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Robert,
    I added the code to the first post as well (to make it easy for people to find as the thread grows)
    Thank you for taking the time to work/post the code :)
    Mark

    kram242, Mar 18, 2010
    #7
  8. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Evil-Tunes, May 12, 2010
    #8
  9. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    Come on Robert get it right will you! :lol: :lol:

    frankrcfc, May 12, 2010
    #9
  10. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    Ok people after a computer Crash Im back I will post some new plans in the next couple of Days!

    sdparkflyers, May 18, 2010
    #10
